Boost your cooking.
Sometimes you just need a little extra boost when cooking. The improved SpeedBoost function in our electric cooktops adds even more power to speed up the cooking process.

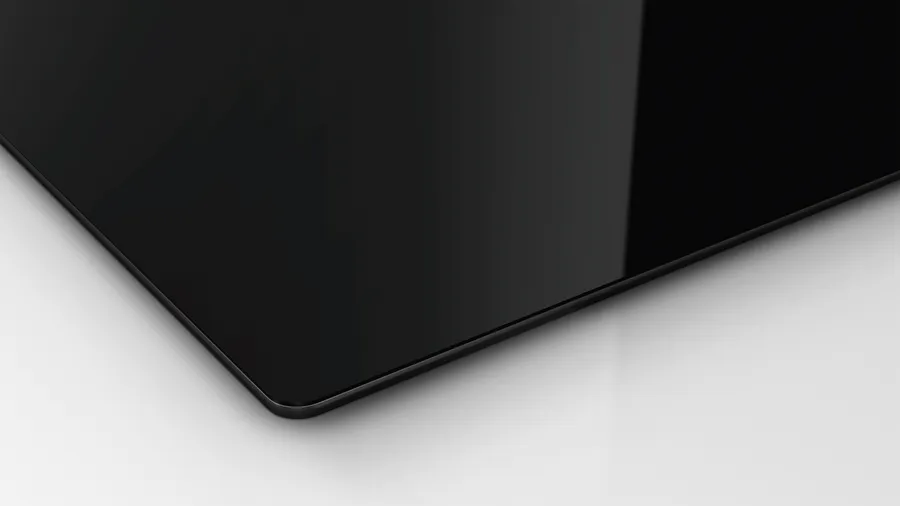

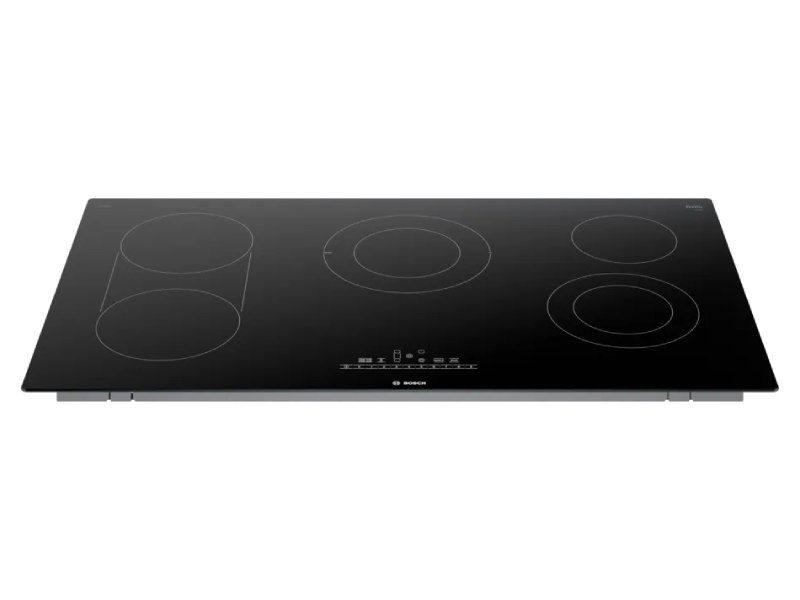

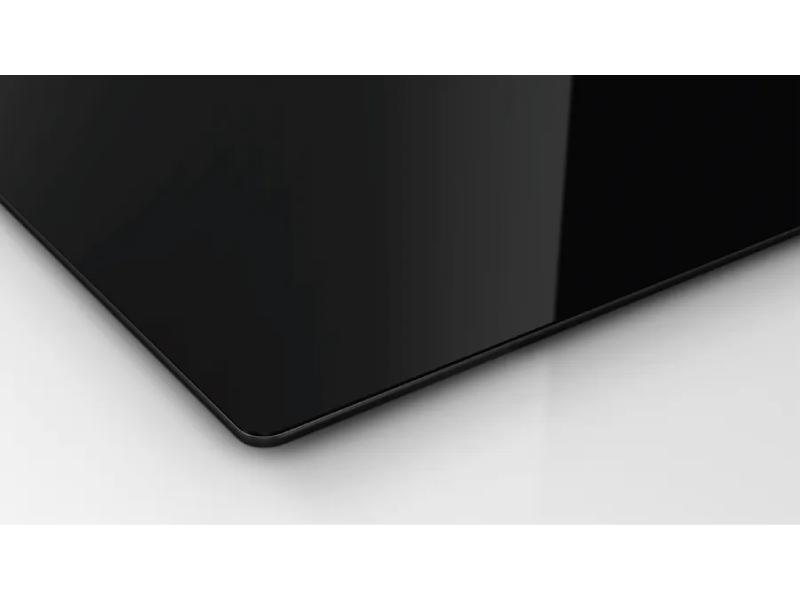

Smooth Ceramic Glass
The smooth ceramic glass surface makes cooking and cleaning especially easy.

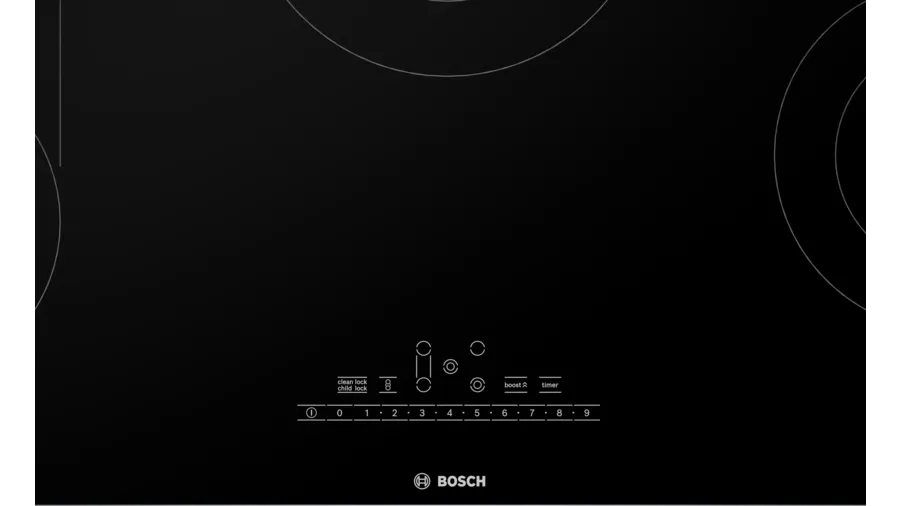

Your temperature, your way.

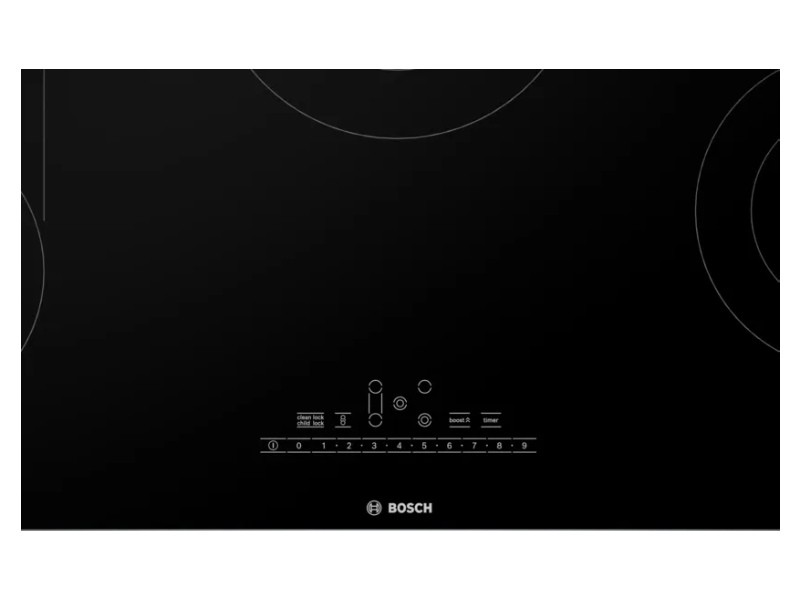

Juggling multiple pots and pans on different power levels can be confusing and frustrating. With PreciseSelect, an intuitively designed control panel allows you to select the cooking zones and set the specific power level you want quickly and easily.
- SpeedBoost offers shorter heat-up times for liquids.

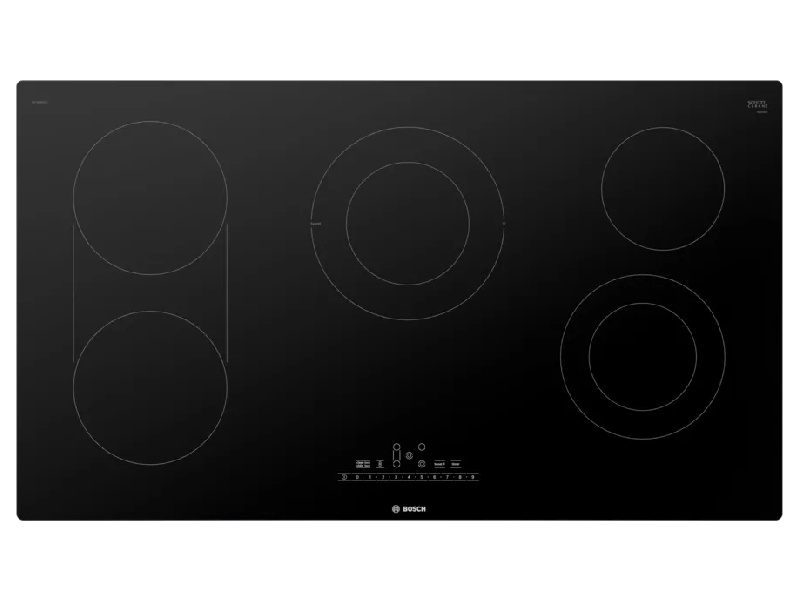

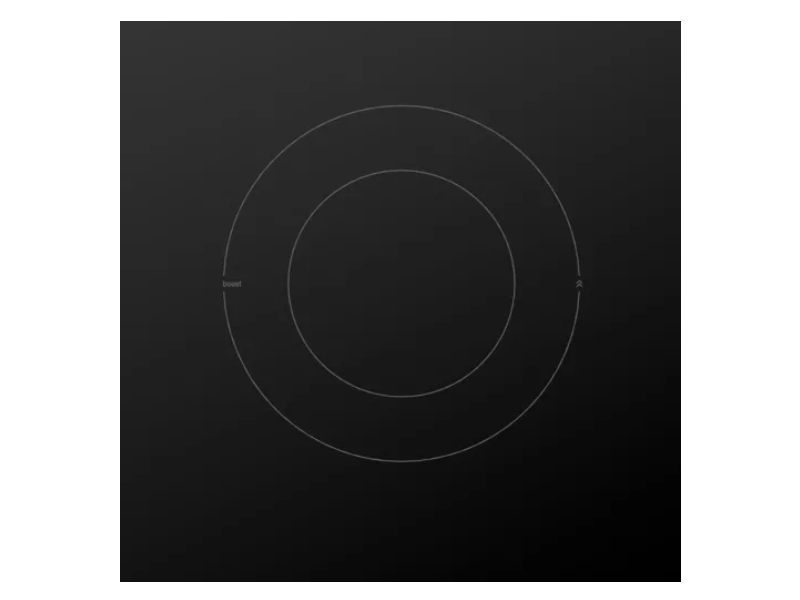

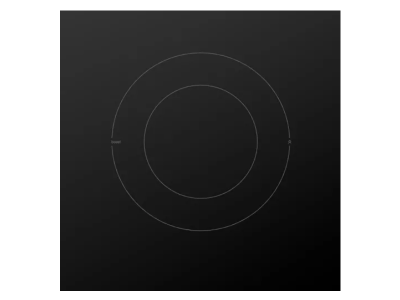

- Bridge Element Accommodates Oblong Pans and Many Diameters of Cookware
- Ceramic Glass:this smooth surface makes cooking and cleaning especially easy.
- PreciseSelect - direct cooking level selection.
- Panel Lock feature locks the control panel to prevent accidental changes in settings.

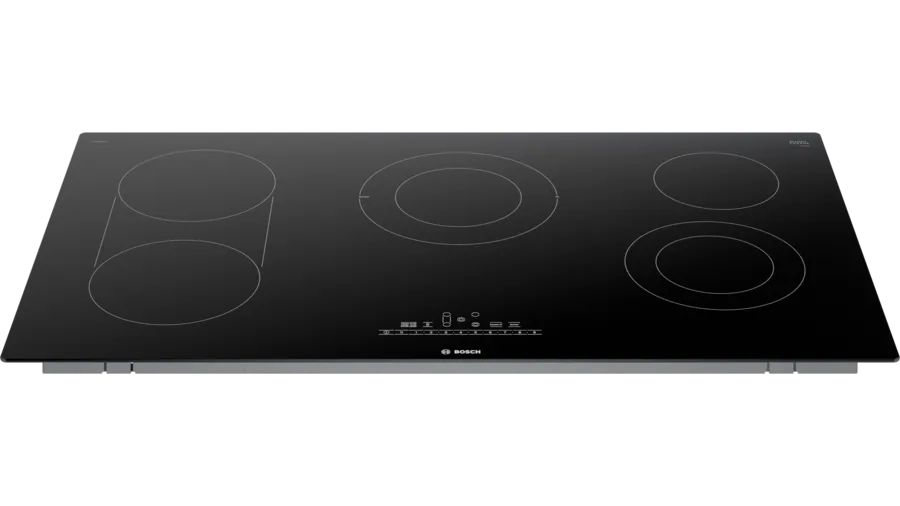

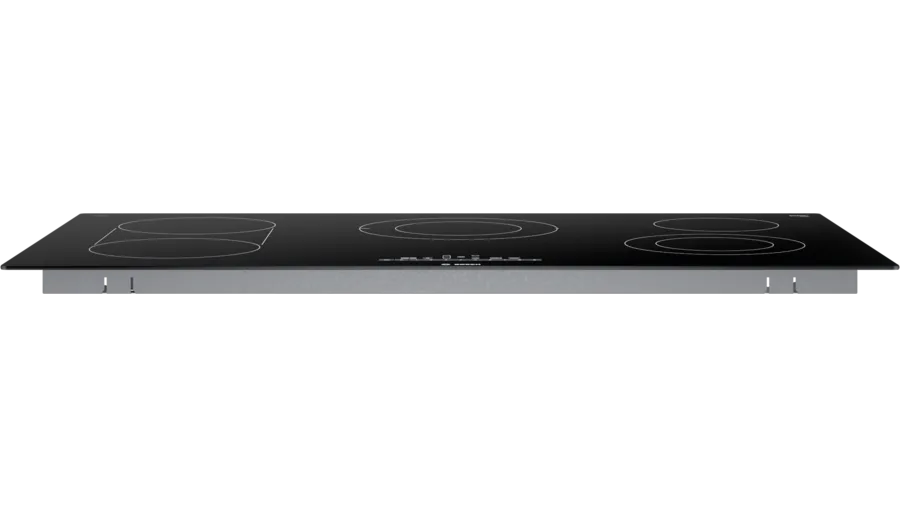

Design
- Black-glass Seemless Design
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
Performance
- Dual Elements Offer the Capability to use Multiple Pan Sizes
- Bridge Element Accomodates Oblong or Oversized Pans and Griddles
- SpeedBoost - Delivers More Power to Speed Up the Cooking Process
Convenience
- PreciseSelect - Direct Cooking Level Selection - 17 Settings for Precise Control
- Use the Kitchen Timer to Measure Cooking Time or as a Reminder
- CleanLock - Prevents Unwanted Changing of Settings While Cleaning Spills
Safety
- Two-Level Heat Indicator - Warns if Cooktop is Warm or Hot
- ChildLock - Prevents the Cooktop from Being Accidentially Switched on. Locks Temperature Settings if in Use.
Cooking zone 9 | |
---|---|
Type of 9th heating element | Radiant heating |
Power of 9th heating element (kW) | 1.4 ; 3.6 kW |
Location of 9th heating element | front centre/cent |

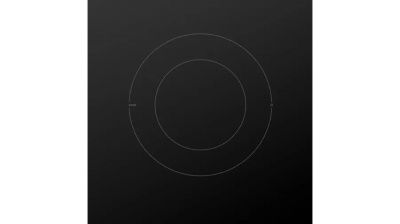

Dimension of 9th heating element (in) | 6" ; 9" |
Dimension of 9th heating element | 140 ; 230 mm |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 7 | |
Type of 7th heating element | Radiant heating |
Power of 7th heating element (kW) | 0.8 ; 1.9 kW |
Location of 7th heating element | front right |
Dimension of 7th heating element (in) | 5" ; 8" |
Dimension of 7th heating element | 120 ; 195 mm |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 5 | |
Type of 5th heating element | Radiant heating |
Power of 5th heating element (W) | 1.2 kW |
Location of 5th heating element | back right |
Dimension of 5th heating element (in) | 6" |
Dimension of 5th heating element | 140 mm |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 3 | |
Type of 3rd heating element | Radiant heating |
Power of 3rd heating element (W) | 1.8 kW |
Location of 3rd heating element | back left |
Dimension of 3rd heating element (in) | 7" |
Dimension of 3rd heating element | 180 mm |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 1 | |
Type of heating element | Radiant heating |
Power of heating element (W) | 1.8 kW |
Location of 1st heating element | front left |
Dimension of 1st heating element (in) | 7" |
Size and Weight | |
Minimum distance from rear wall (in) | 2 |
Minimum distance from counter front (in) | 2 1/4 |
Net weight | 30.000 lbs |
Net weight | 13.8 kg |
Overall appliance dimensions (HxWxD) (in) | 1/4" 4 " x 37" x 21 1/4" |
Dimensions | 100 x 940 x 540 mm |
Connectivity | |
Cooktop-based hood control | No |
Home Connect | No |
General | |
Variant color | Black |
Frame type | Frameless |
Basic surface material | Ceramic |
Power of the heating elements | 1 x 1.2 KW, 1 x 1.9 KW, 1 x 3.6 KW, 2 x 1.8 KW |
Dimensions of the heating elements | 1 x 14,0 cm , 1 x 19,5 cm , 1 x 23,0 cm , 2 x 18,0 cm |
Total number of cooktop burners | 5 |
Type of appliance width | 90 cm |
Self-sufficient cooker control | Self-sufficient electro hobs |
Cooktop type | Radiant cooktop |
Construction type | |
Color of surface | Black |
Construction type | Built-in |
Design - line | Frameless |
Number of electric elements | 0 |
Number of electric cooking zones | 5 |
Type of frame | Frameless |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 5 |
Number of radiant elements | 5 |
Number of electric warming zones | 0 |
Safety | |
Residual heat indicator | Separate |
Connection | |
Frequency | 60 Hz |
Energy source | Electric |
Power cord length | 96 cm |
Watts | 10,200 W |
