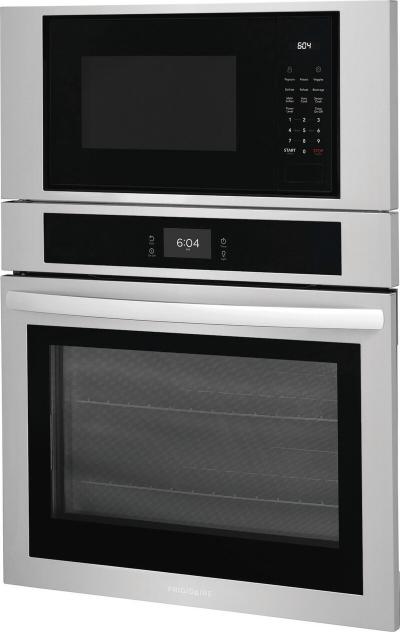

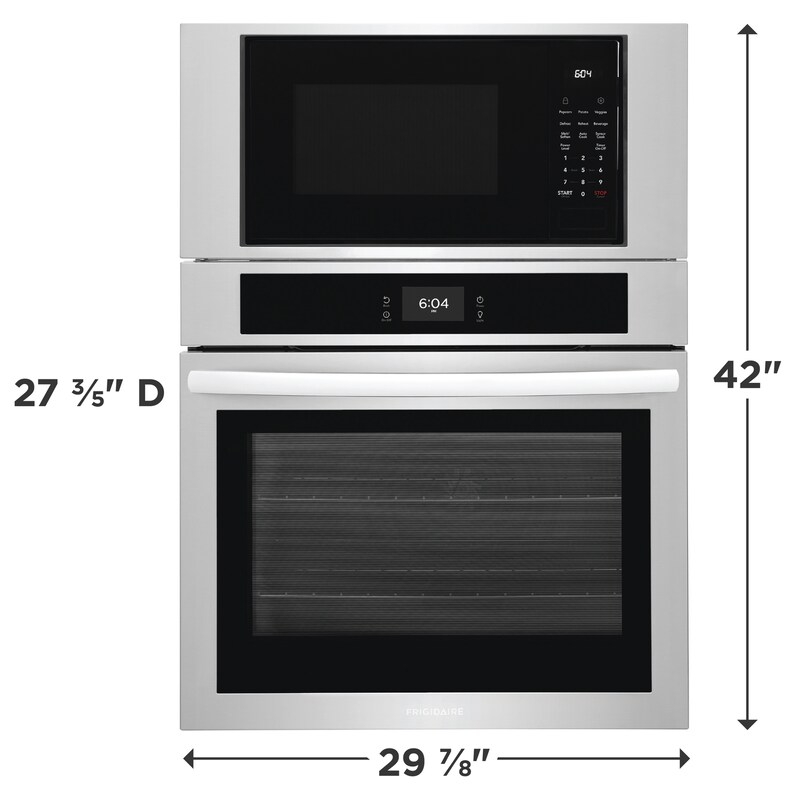

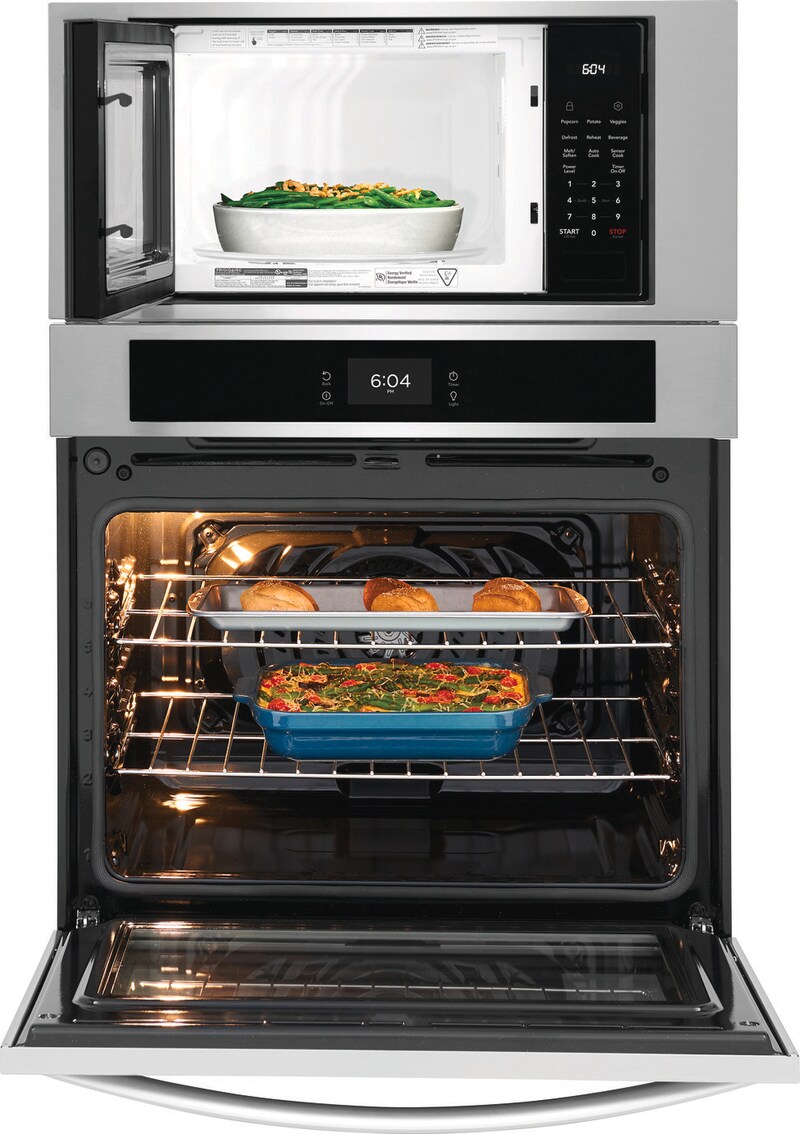

30" Frigidaire Combination Electric Wall Oven and Microwave - FCWM3027AS
You may also like
Overview & Features
This double wall oven features a large, 5.3 cu. ft. oven with Convection Baking, which allows you to achieve faster, more even multi-rack baking results.
- Fan Convection
- Sensor Cook Technology
- Custom Broil Temp Setting
- Convenient Cook Time Setting
- Keep Warm Setting
- Premium Touch Screen Control Panel
- Self Clean Oven
- Extra Large Oven Capacity
Why you'll love it

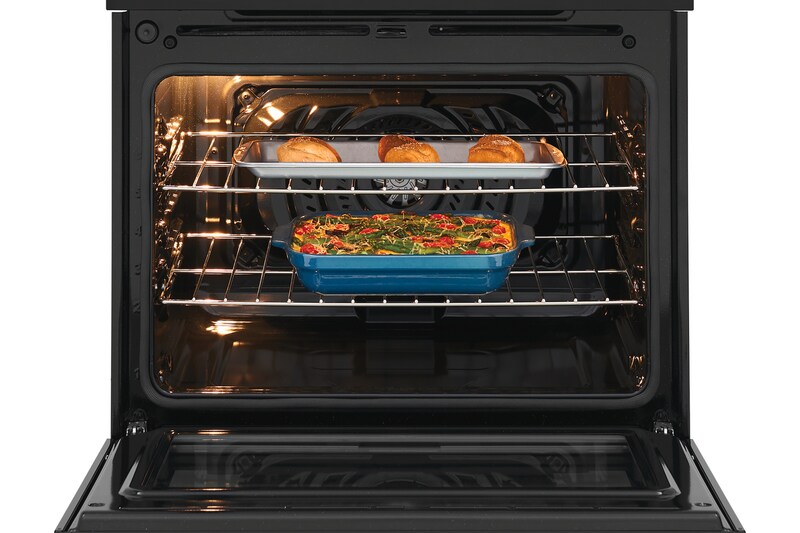

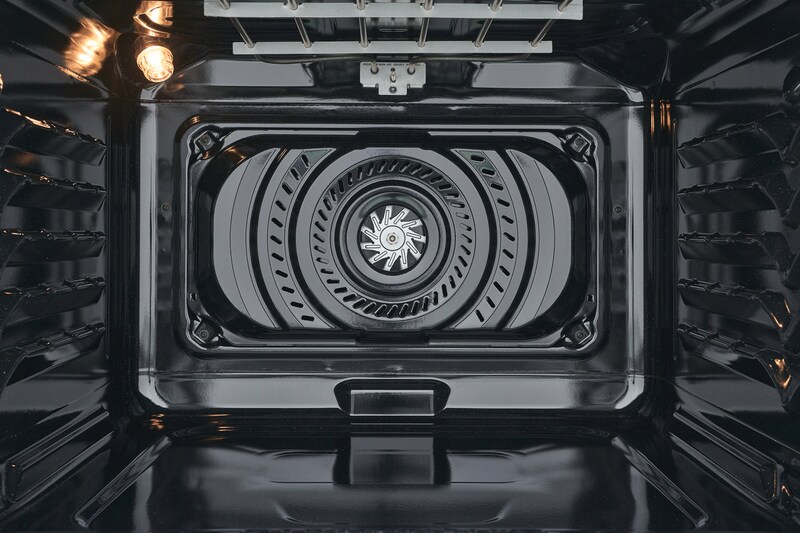

Fan Convection
Get faster, more even multi-rack baking results with Fan Convection.
Self Clean Oven
Self clean options available in convenient 2, 3 and 4-hour cycles.
Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital oven control panel.
Extra Large Oven Capacity
Cook more at once with our extra large, 5.3 cu.ft. capacity oven.
Custom Broil Temp Setting
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
Sensor Cook Technology
Microwave sensors detect and automatically adjust power levels and cooking times for a variety of items, providing great-tasting results every time.
Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off.
Keep Warm Setting
Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
| OVEN | |
|---|---|
| Bake Element Type | Hidden |
| Bake Element Pass | 4 |
| Bake Element | 2600 Watts |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Microwave Cooking | |
| Veggies | Yes |
| Sensor Cooking | Yes |
| Reheat | Yes |
| Potato | Yes |
| Popcorn | Yes |
| Melt / Soften | Yes |
| Defrost | Yes |
| Beverage | Yes |
| Auto Cook | Yes |
| Internal Specifications | |
| Turntable Diameter | 13 1/2" |
| Turntable Material | Glass |
| Rack | Yes |
| Interior Light Wattage | 25 Watts |
| Interior Light Type | Halogen |
| Interior Light Quantity | 1 |
| Interior Color | White |
| Installation | |
| Power Supply Connection Location | Top Left |
| General Specifications | |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Prop 65 Label | Yes |
| Frigidaire Fit Promise | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 240 V |
| Minimum Circuit Required | 40 Amps |
| Connected Load @ 240V | 7.9 kW |
| Amps @ 240 Volts | 40 Amps |
| Certifications and Approvals | |
| UL Listed | Yes |
| Star-K Certification | Yes |
| RoHS | Yes |
| CSA Listed | Yes |
| Cooking Controls Function | |
| Silent Control Panel | Yes |
| Program Fahrenheit or Celsius | Yes |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Cooking Controls | |
| Timer On / Off | Yes |
| Temperature Display | Yes |
| Start | Yes |
| Self Clean | Yes |
| Preheat | Yes |
| Oven Light | Yes |
| Off | Yes |
| Light | Yes |
| Kitchen Timer | Yes |
| Delay Start | Yes |
| Cook Time | Yes |
| Convection Bake | Yes |
| Clock | Yes |
| Cancel | Yes |
| Broil | Yes |
| Bake Time | Yes |
| Bake | Yes |
| CONTROLS | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Microwave Control Features | |
| + 30 Seconds | Yes |
| Display | |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Membrane |
| Accessories | |
| Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK |
