36" Kitchenaid 20.8 Cu. Ft. Built-In French Door Bottom Mount Refrigerator - KBFN536SJP

Top Features
Designed to be Personalized
with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching handles. Personalize your hardware with optional handle accessory kits in Brass, Bronze, Black Ore and Stainless Steel.
Multiple Installation Options
allow you to choose an installation style for your built-in based on your aesthetic preferences: overlay for a softly striking incorporated look or proud for a standout presence.
Preserva®+ Cooling System
features two independent cooling systems that work together to keep the humidity at the right level to help keep all your produce fresh.
Additional Features
Signature Platinum Interior
wows from the inside out with premium craftsmanship and design. Metallic touchpoints, smoked crisper bins and ultra-bright LED lighting pop against the stunning silver-colored finish.
SatinGlide® Drawer System
adds a smooth experience to the crisper drawers. Its ball-bearing rollers enhance the opening and closing experience every time, whether it is nearly empty or fully loaded.
Adjustable Spill-Resistant Glass Shelves
feature premium glass, offering edge-to-edge storage for whatever you need. Plus, its nano-etched edges help prevent spills from overflowing into other parts of your refrigerator, and its design allows you to remove them for easy cleaning. Sleek metallic trim on the front edges adds a striking accent.
Personalized Door Stop
tailors your refrigerator to suit your space by setting the door to stop at 90°, 110° or 130°. This prevents the door from swinging open too widely, giving you the flexibility to load or find ingredients without hitting counters or handles.
FreshFlow™ Air Filter
deodorizes 15x better than baking soda. The replaceable carbon-based filter neutralizes common food odors for up to 6 months.

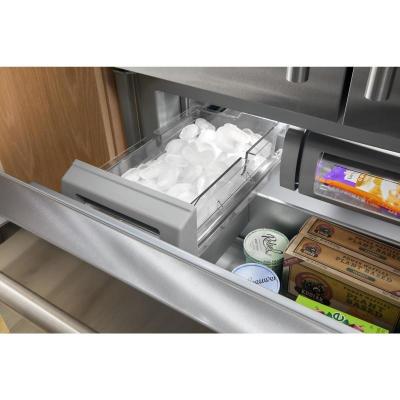

Automatic Ice Maker
ensures that you have a continuous supply of fresh, filtered ice for entertaining or everyday beverages and creations.
Ultra-Bright LED Lighting
gradually brightens to fully illuminate the freezer and refrigerator, making it easy to find what you need.
Max Cool
lets you use the touch of a button to drop refrigerator temperature to the coldest level, helping to chill groceries, beverages or ingredients for serving. After 24 hours, the temperature will automatically be restored to the previous setting.
Max Freeze
lets you use the touch of a button to drop freezer temperature to coldest level (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.
Intuitive Controls
provide an easy-to-use touch pad control system that puts every refrigerator function right at your fingertips. Up-Front Temperature Controls make it easy to choose temperature settings, control the ice maker and check the status of the water filter.
Produce Preserver
helps delay over-ripening to extend freshness of fruits and vegetables. This replaceable filter for crisper drawers absorbs the ethylene gas produced as part of the natural ripening process for up to 6 months.
Galloon Door Bins
maximize storage with thoughtfully designed and adjustable bins, accommodating gallon jugs, large containers and bulky items with ease.
Dimensions | |
---|---|
Depth | 27.75 " |
Width | 36.25 " |
Height | 83.37 " |
Carton Depth | 32.04 " |
Carton Height | 86.57 " |
Carton Width | 39.8 " |
Gross Weight | 566.5 lbs |
Net Weight | 538.17 lbs |
Depth Closed Excluding Handles | 25.75 " |
Depth Closed Including Handles | 27.81 " |
Depth With Door Open 90 Degree | 41.25 " |
Cabinet Width | 35.25 " |
Cutout Depth | 24.0 " |
Cutout Height | 83.5 " |
Cutout Width | 35.5 " |
Depth Excluding Doors | 23.68 " |
Height To Top Of Cabinet | 83.37 " |
Popular Height | 71 Inch Tall or Higher |
Popular Width | 36 Inch Wide |
Freezer compartment | |
Door Type | Pull-Out |
Light | Yes |
Freezer Drawer Basket | 1 Full Width Lower Metal 1 Half Width Upper Plastic |
AHAM Volumes And Shelf Area | |
Freezer Volume Cu Ft | 5.6 |
Specifications | |
Fingerprint Resistant | No |
Country Of Origin | USA |
Extended Service Plan Parent | EW12IW1Y, EW12IW2Y, EW12IW4Y |
Description | |
Type Of Refrigerator | French Door |
Dispenser | |
Dispenser Type | N/A |
Exterior | |
Number Of Doors | 2 |
Hidden Hinge | Yes |
Handle Color | Juniper Green |
Handle Type | Reach-Through Handle |
Cabinet Finish | Smooth |
Door Style | Flat |
Reversible Door | N/A |
Filters | |
Produce Preserver | No |
Water Filter Location | Exterior |
Water Filter Part Number | EDR3RXD1 |
Icemaker | |
Icemaker | Yes |
Refrigerator compartment | |
Door Bins | 4 Adjustable Full-Width |
Humidity Controlled Drawers | Yes |
Lighting | LED |
Liner Finish | Platinum |
Number Of Interior Shelves | 4 |
Spill Proof Glass Shelves | 4 Adjustable Half-Width |
CONTROLS | |
Control Lockout | N/A |
Control Location | Interior Up Front |
Control Type | Electronic |
Door Ajar Open Alarm | Yes |
Max Cool Fast Cool | Yes |
Sabbath Mode | Yes |
Water Filter Indicator Reset | Exterior |
Certifications | |
UL | Yes |
Star K Certified | Yes |
Electrical | |
Amps | 15 |
Volts | 120 |
Configuration | |
Installation | Built-In |
