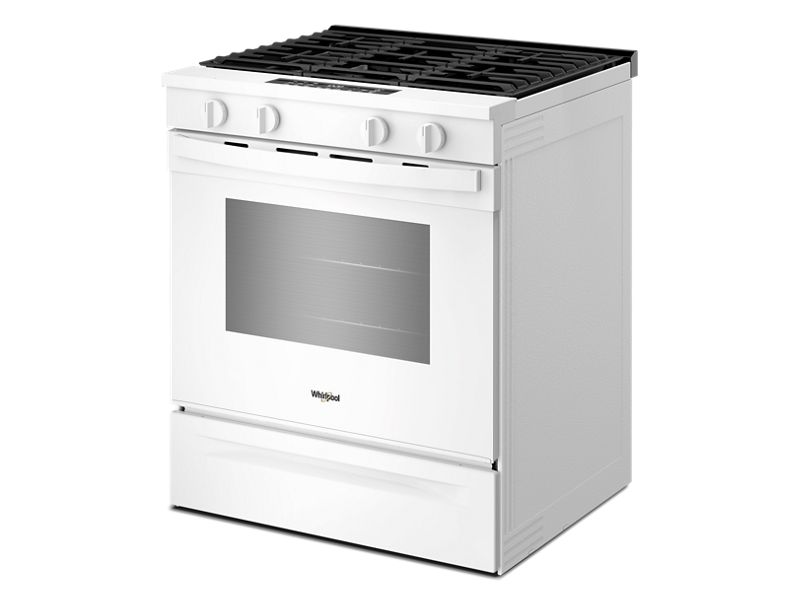

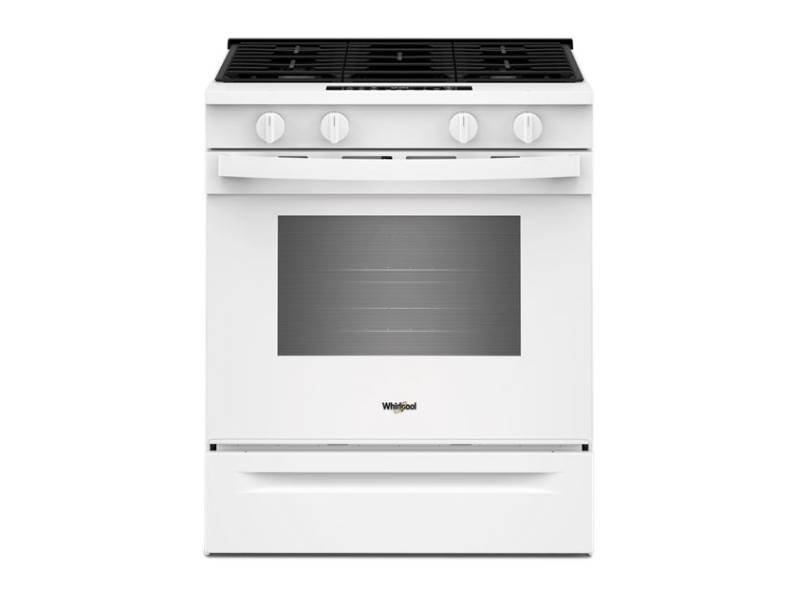

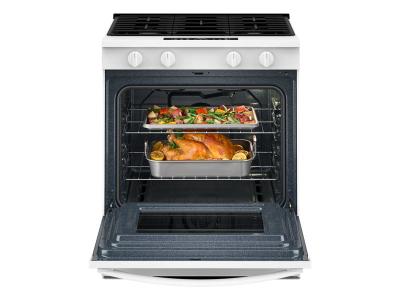

30" Whirlpool Gas Smart Range with Air Cooking Technology and Steam Clean - WSGS4530TW

Key Features
- Air Cooking technology
- Cooking Modes
- No Preheat Air Fry
- SpeedHeat™ Burner
- Steam Clean
Product Description

30-inch Gas Smart Range with Air Cooking Technology and Steam Clean
Experience the difference* of Air Cooking Technology with Air Baking in this 30-inch gas range. Get crispy fast with No Preheat Air Fry or make more feel-good meals with a variety of 7 Cooking Modes. Maximize your cooking space with an 8000 BTU Griddle Zone and prevent soils from building up by regularly using Steam Clean.*Compared to thermal bake.
Features

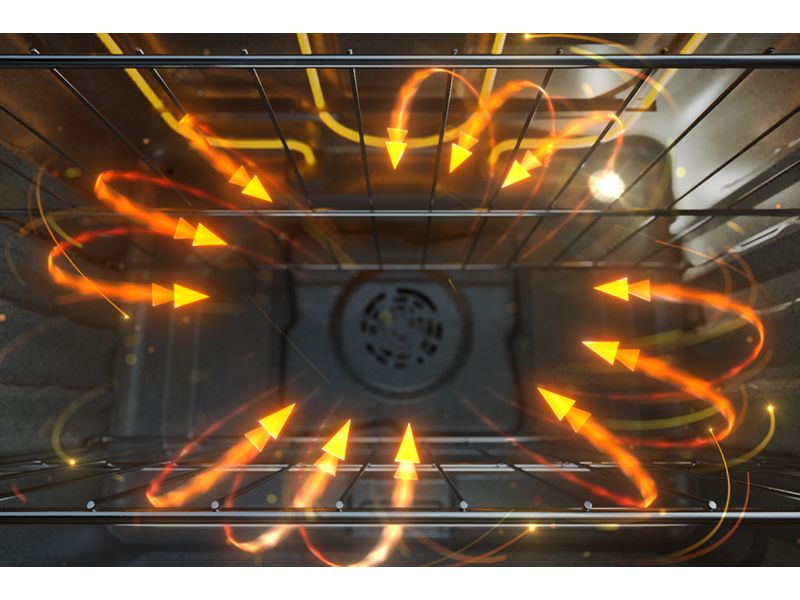

Air Cooking technology
Experience the difference with the dynamic air flow and intense heat of Air Fry and Air Baking

Cooking Modes
Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry, Air Baking, Air Roast, Air Broil and Air Reheat, or use traditional heating modes like No Preheat Mode, Bake, Slow Cook, Broil, and Keep Warm.

No Preheat Air Fry
Save time* with No Preheat Air Fry. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt. *Compared to YWFE550S0LZ

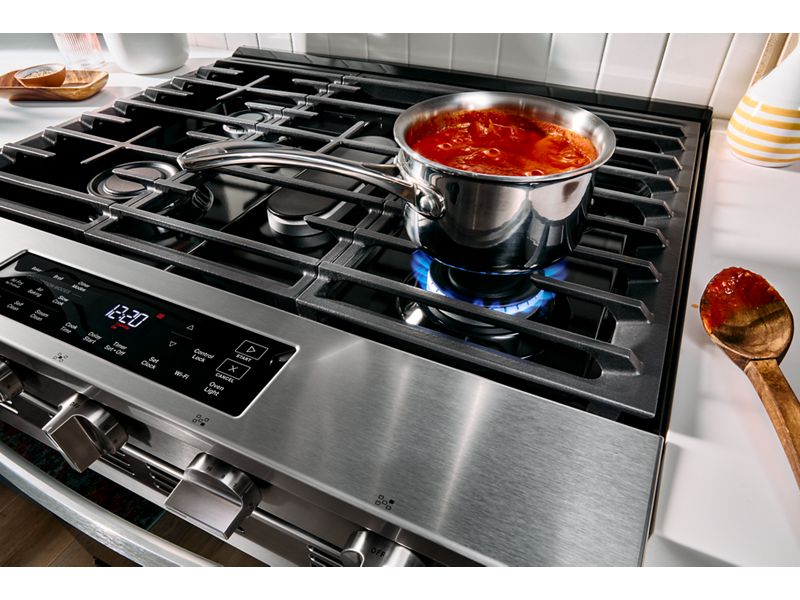

SpeedHeat™ Burner
Use the SpeedHeat™ Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly.*Compared to 10K burner on the same model
Steam Clean
Use the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
Air Baking

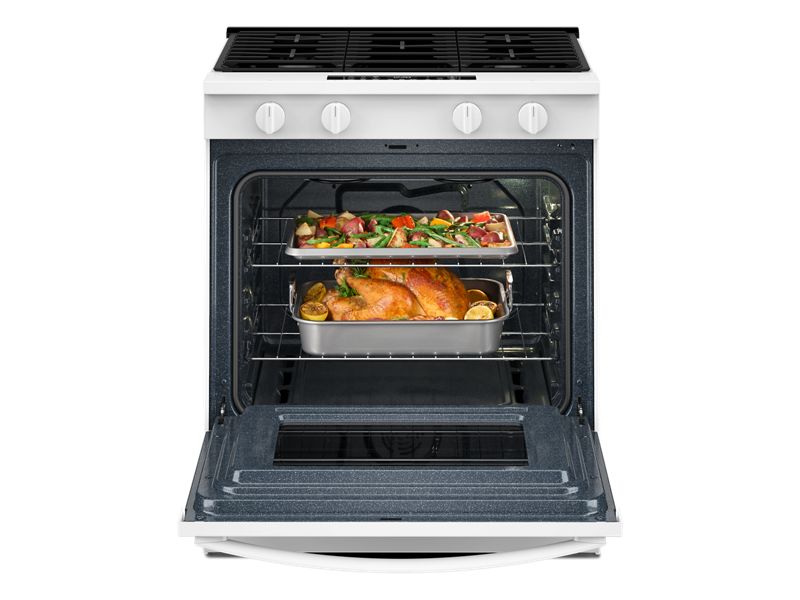

Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.
Air Roast
Seal in flavours and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavour of hearty dishes like pot roast and whole chicken.
Slow Cook
Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.
Keep Warm Setting
Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.

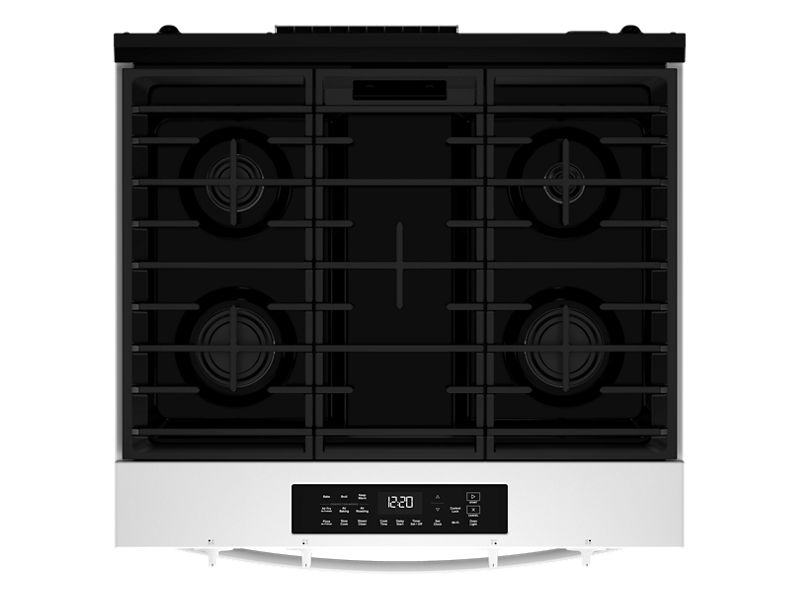

Edge-to-Edge Grates
Enjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.
Smart Range
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.* *Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Smart Feature Updates
Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.

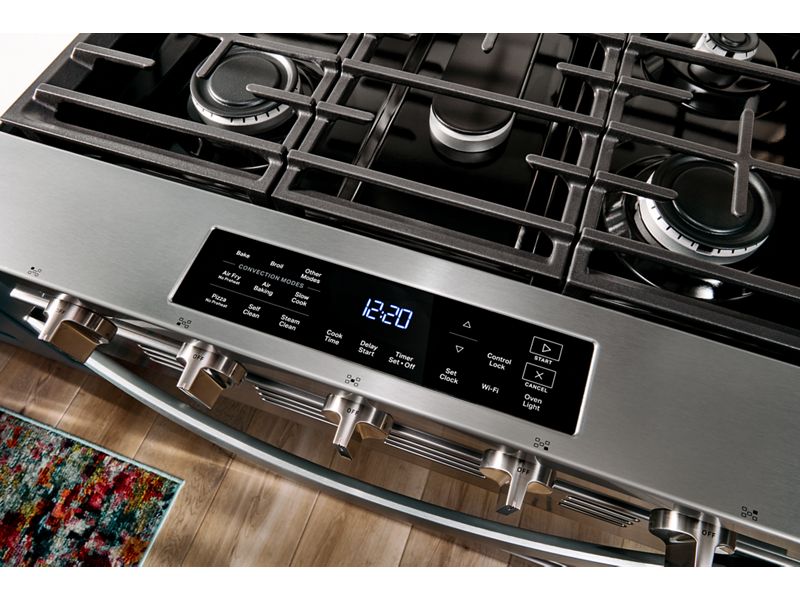

Front Control Design
Easily upgrade your kitchen with the features you want and a premium look that brings controls to the front of the range for easy reach with Front Control Design.
Storage Drawer
A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
FIT System Limited Guarantee
Fits right, or we make it right. Upgrade your range without the construction zone. We’re so confident your new Whirlpool® Slide-In Range will fit your existing space that we’ll provide up to $100 if your cabinets need a professional adjustment*.*Fit System Limited Guarantee: On 30" Whirlpool® slide-in ranges. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
| Certifications | |
|---|---|
| ADA Compliant | Yes |
| CUL | Yes |
| Energy Star® Qualified | No |
| Star K Certified | Star K Certified |
| UL | Yes |
| Smart Compatibility | |
| Connectivity | Amazon Alexa, Android, Google Assistant, Nest, iOS |
| Smart Appliance | Yes |
| Works With | App, Bluetooth, Remote Access, Voice Controlled, WiFi |
| Electrical | |
| Amps | 15 |
| Hz | 60 |
| Power Cord Included | Yes |
| Volts | 120 |
| Watts | 1400 |
| Element/Burner Details | |
| Center Rear Element-Burner Power | 12,000 BTU |
| Center Rear Element-Burner Size | N/A |
| Center Rear Element-Burner Type | Oval Burner |
| Cooktop Element Style | Sealed Burner |
| Left Front Element-Burner Power | 15,000 BTU |
| Left Front Element-Burner Size | N/A |
| Left Front Element-Burner Type | Large |
| Left Rear Element-Burner Power | 10000 BTU |
| Left Rear Element-Burner Size | N/A |
| Left Rear Element-Burner Type | Standard |
| Number of Burner | 4 |
| Number of Grates | 3 |
| Right Front Element-Burner Power | 18,000 BTU |
| Right Front Element-Burner Size | N/A |
| Right Front Element-Burner Type | Extra Large |
| Right Rear Element-Burner Power | 5000 BTU |
| Right Rear Element-Burner Size | N/A |
| Right Rear Element-Burner Type | Simmer/Melt |
| Dimensions | |
| Adjustable Height | Yes |
| Capacity | 141.50 l, 5 cu. ft. |
| Common Size | 76.20 cm, 30 in |
| Console Language | English |
| Cutout Depth | 60.96 cm, 24 in |
| Cutout Height | 91.44 cm, 36 in |
| Cutout Width | 76.20 cm, 30 in |
| Depth | 64.52 cm, 25.4 in |
| Depth Closed Excluding Handles | 69.60 cm, 27.4 in |
| Depth Closed Including Handles | 73.91 cm, 29.1 in |
| Depth Excluding Doors | 64.52 cm, 25.4 in |
| Gross Weight | 92.99 kg, 205 lbs |
| Height | 92.96 cm, 36.6 in |
| Maximum Height | 96.77 cm, 38.1 in |
| Minimum Height | 92.96 cm, 36.6 in |
| Net Weight | 85.73 kg, 189 lbs |
| Oven Interior Depth | 48.26 cm, 19 in |
| Oven Interior Height | 47.75 cm, 18.8 in |
| Oven Interior Width | 61.47 cm, 24.2 in |
| Width | 75.95 cm, 29.9 in |
| Oven Cavity Details | |
| Automatic Convection Conversion Temperature Adjust | No |
| Bake Element Power | 16500 BTU |
| Broiler Element Power | 1300W Electric Broil |
| Broiler Location | Top Center |
| Convection Cooking Technology | Single-Fan |
| Convection Functions | Air Baking, Air Broil, Air Fry, Air Reheat, Air Roast, Bake, Broil, and Roast, Keep Warm, No Preheat Air Fry, No Preheat Frozen Bake Lasagna, No Preheat Frozen Bake Pizza, Slow Cook, Warm Zone |
| Door Removable | Yes |
| Hidden Bake Element | Hidden |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Cleaning Type | Steam-Clean |
| Oven Cooking System | Convection |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Halogen |
| Oven Rack Front Material | Metal |
| Oven Rack Guide Type | Embossed |
| Oven Rack Type | 2 Standard |
| Temperature Probe | No |
| Temperature Sensor | Yes |
| Exterior Details | |
| Door Lock | Yes |
| Door Type | Glass |
| Oven Control Knob Type | N/A |
| Oven Control Location | Front |
| Control Type | Tap Touch |
| Oven Window Size | Extra Large |
| Cooktop Details | |
| Auto Re-ignition | No |
| Cooktop Control Knob Type | Plastic |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Material | Porcelain Coated Steel |
| Griddle Included | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | Yes |
| Ignition Type | Direct Spark Ignition |
| Details | |
| Air Fry | Yes |
| Cooktop Configuration | All Burners |
| Delay Clean | No |
| Export Packaging | No |
| Fuel Type | Gas |
| Installation Configuration | Freestanding |
| LP Convertible | Yes - Kit Included |
| Literature Language | English, French, Spanish |
| Natural Gas Convertible | No |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Single Oven |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, Language Conversion, No Preheat - Frozen, Rapid Preheat, Reheat, Sabbath Mode, Start Time, Stop Time, Timer |
| Power On Indicator Light | Yes |
| Power Outage Compatible | Yes |
| Range Configuration | Slide-In |
| Range Type | Slide-in |
| Grate Details | |
| Grate Details | Dishwasher Safe, Matte Finish, Porcelain Coated Steel Grates |
| CONTROLS | |
| Colour | White |
