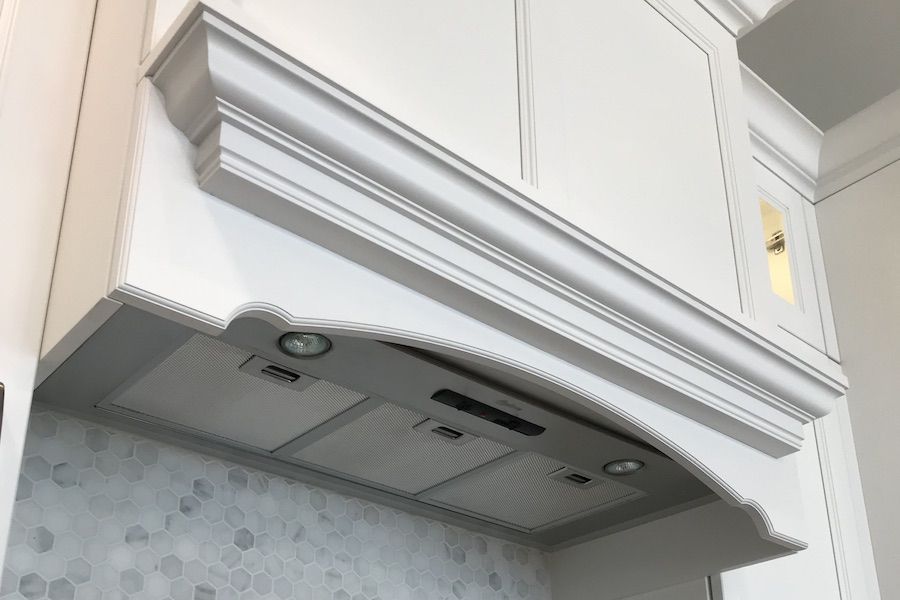

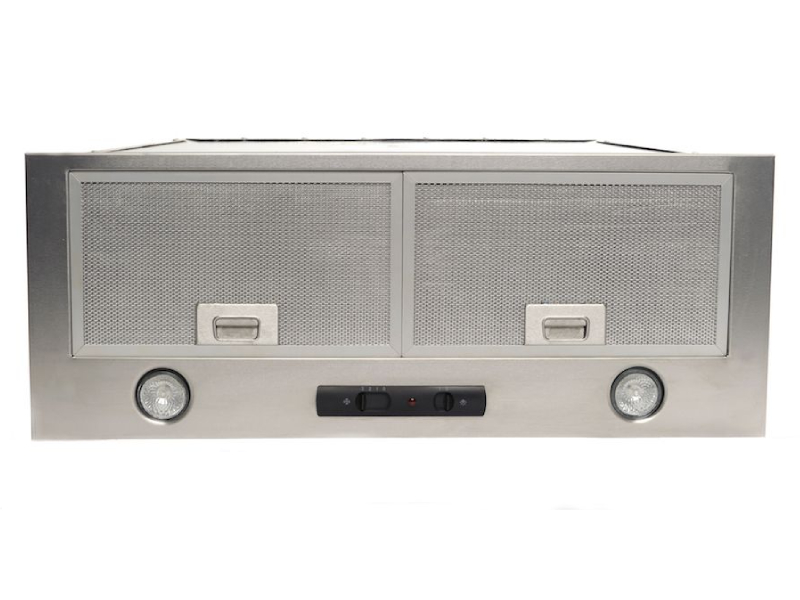

The three speed slide control is located on the underside of the machine for easy access and control. The range hood cannot be seen from eye-level, allowing you to arrange your cabinets as though there were no fan, creating a fluid and classy look. Machine washable mesh filters efficiently filter the air while bright halogen light bulbs provide all the illumination you’ll need. Another innovative design unique to Cyclone.
Features
- Insert range hood
- 6’’ round duct adapter
- Non-stick aluminum fan blades
- 3 speed slide control
- Quick release aluminum mesh filters
- 2 halogen light bulbs (2 x 25W E26)
- Plug-in connection
Maximize Energy Use: 3 speed fan control panel allows you to manage power
Improve Air Quality: Avoid mold and extend the lifespan of your kitchen by efficiently removing moisture, smoke and other airborne contaminants caused by cooking indoors
Reduce Landfill: High-quality mesh filters greatly reduce the need for periodic replacements, reducing landfill
Avoid Grease Build-up: Utilizes grease extraction technology
| SPECIFICATION RANGES | |
|---|---|
| Air Flow Volume | 550 CFM |
| Electrical Connection | 120V/60Hz |
| Power Consumption | 240 Watts |
| Current | 2.0 Amps |
| Fan Speed | 1599 RPM |
| Fan Type | Centrifugal Blower |
| Finishes | Stainless Steel |
| Ducting | 6” Round |
| Dimensions | Width: 28 ⅜” / 33 ⅞”, Height: 10″ / 10¼”, Depth: 11 ⅜” / 14 ⅛” |
| Noise Level | Min. 2 Sones, Max. 6 Sones |
| Options | |
| Widths | 28″ 34″ |
| Models | BX21528, BX21534 |
