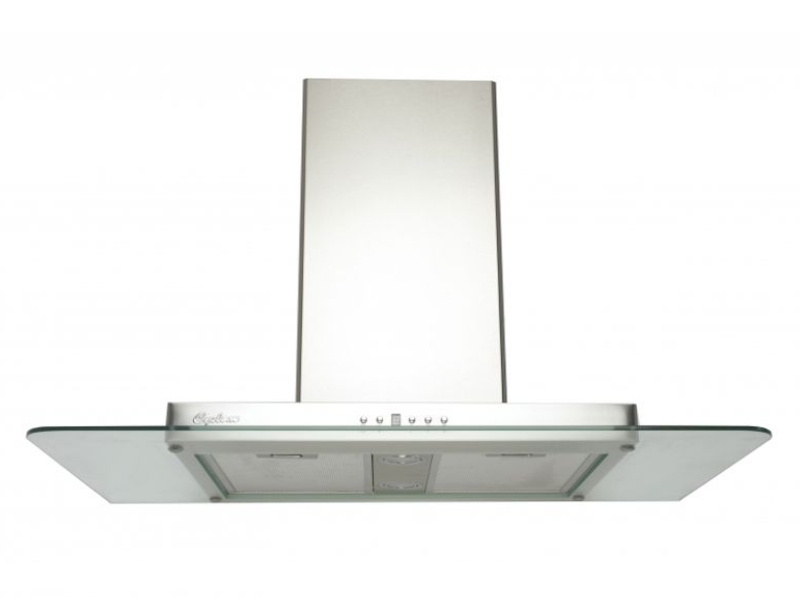

36" Cyclone Alito Collection Wall Mount Range Hood With Round Duct Adapter - SCB50336

Category : Ventilation
SKU : SCB50336

30 36
Ask for price
Scheduled Delivery

Literature

Balanced and simple, the understated SC(B)503 is simply an attractive exhaust fan. The symmetry of the machine and rounded corners of the glass canopy give it a soft, appealing feel. Perfect for those who pursue superior quality and performance over flash and flamboyance. Fitted with a time-delay OFF feature up to nine minutes, bright LED lights spaced for optimum light distribution and a digital three-speed push button control panel for total control.

Features

  • Wall mount range hood
  • 6” round duct adapter
  • Non-stick aluminum fan blades
  • 3 speed push button control
  • 2 LED lights (2 x 1.4W, 4000K)
  • Quick release aluminum mesh filters
  • Standard chimney fits up to 9 ft. ceiling
  • Up to 9 minute time-delay OFF feature
  • Plug-in connection

Maximize Energy Use: 3 speed digital control panel allows you to manage power while long-lasting LED light bulbs Illuminate cooking area.

Minimize Wasted Energy: Time-delay automatic OFF feature up to nine minutes clears the air after cooking ensuring that the fan is not left running longer than required increasing longevity.

Improve Air Quality: Avoid mold and extend the lifespan of your kitchen by efficiently removing moisture, smoke and other airborne contaminants caused by cooking indoors.

Reduce Landfill: Permanent baffle filters eliminate the need for periodic replacements, while long-lasting high quality mesh filters greatly reduce the need for replacements, reducing landfill.

Avoid Grease Build-up: Utilizes grease extraction technology with reusable grease cup

SPECIFICATION RANGES
Air Flow Volume550 CFM
Electrical Connection120V/60Hz
Power Consumption240 Watts
Current2 Amps
Fan Speed1599 RPM
Fan TypeCentrifugal Blower
FinishesStainless Steel
Ducting6” Round
DimensionsWidth: 30″ / 36”, Height: 44 ½’”, Depth: 19 ¾’”
Noise LevelMin. 2 Sones, Max. 6 Sones
Options
FiltersSCB503 – Quick-Release Stainless Steel Baffle Filters
Chimney FluesB1.CH16 – short (7’-8’ ceilings), B1.CH22 – standard (8’-9’ ceilings), B1.CH32 – extended (9’-11’ ceilings)
Widths30″ / 36”
ModelsSCB50330, SCB50336
