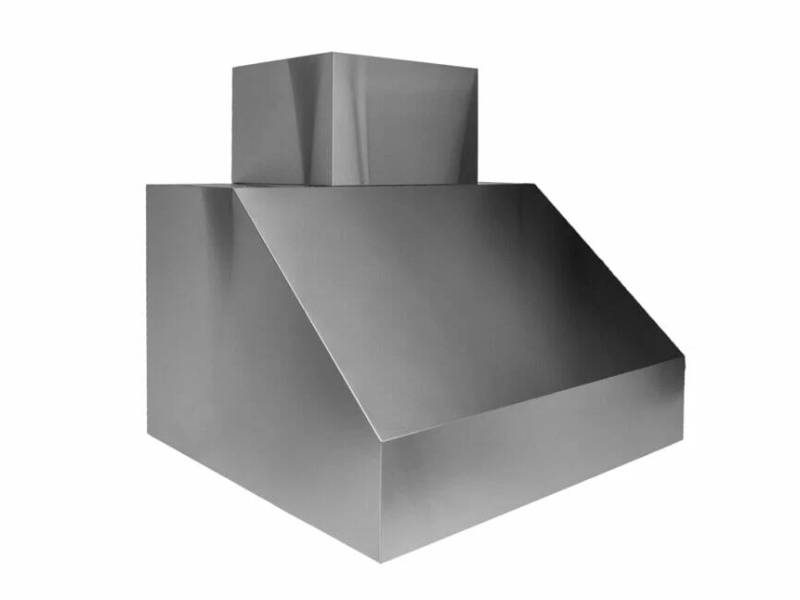

66" Trade Wind S7200 Series Style Outdoor Barbecue Grill Hood - S726623CD

Category : Ventilation
SKU : S726623CD

60 66 72
Ask for price
Scheduled Delivery

Design Specs:

  • Available in 36”, 42”, 48”, 54”, 60”, 66” and 72” widths
  • Generously proportioned 32” depth at bottom, 15″ depth at top, 24″ high hood provides an exceptional capture area

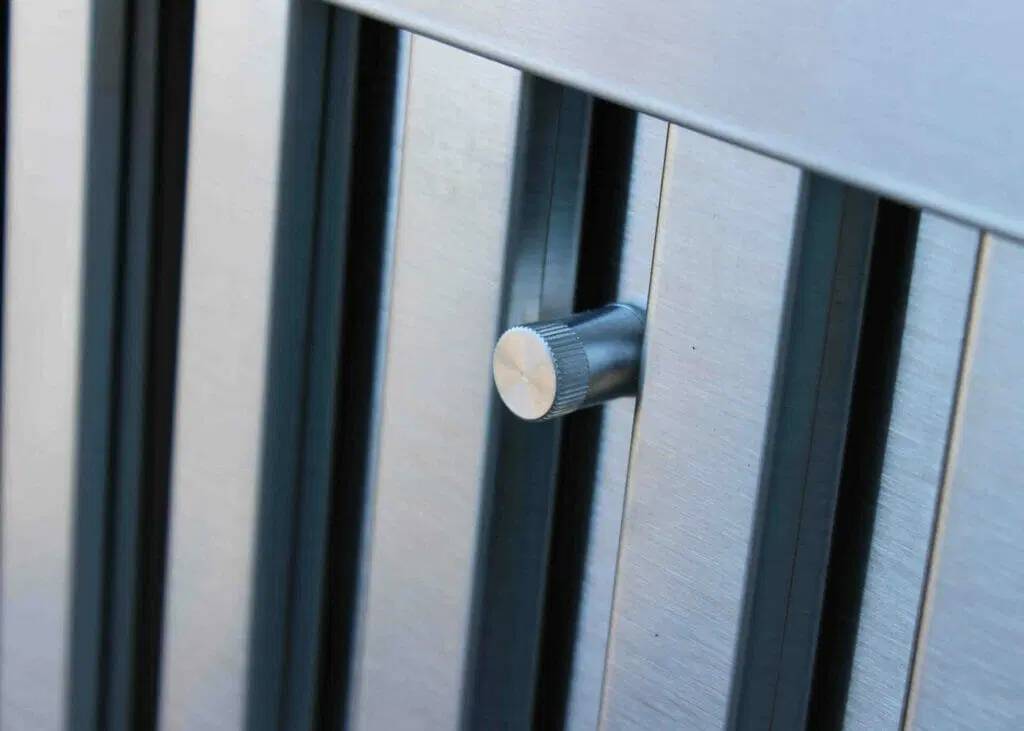

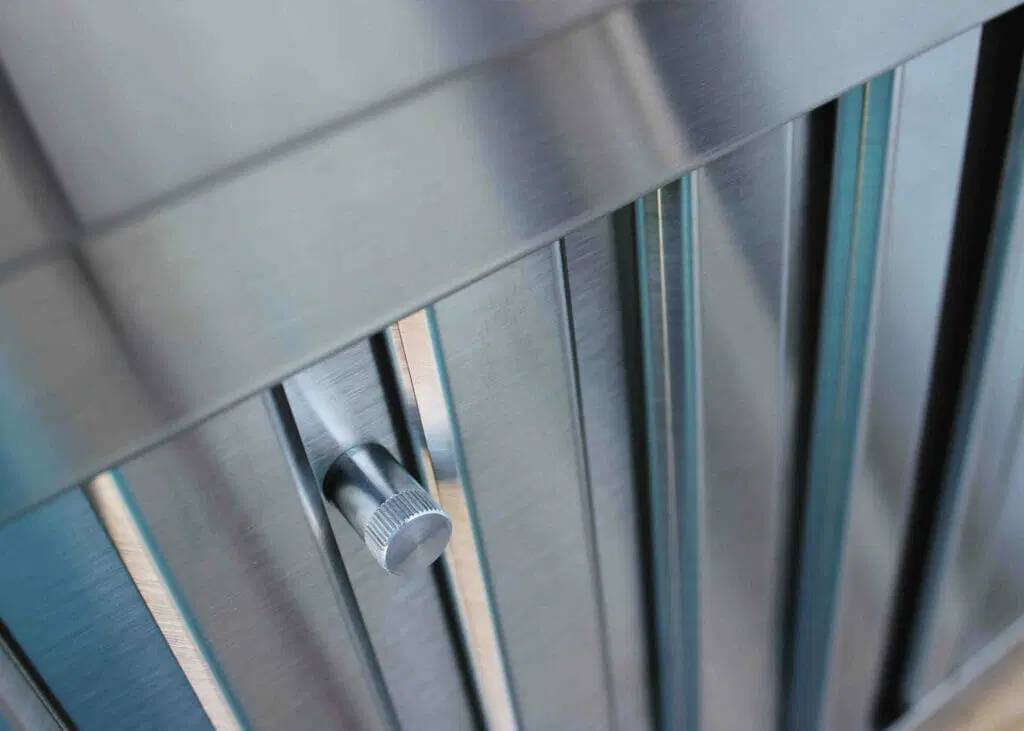

  • Design of the stainless steel commercial baffle filters adds a professional appearance and improved performance

Product Features:

  • Two or four internal sealed motors deliver 1200 CFM or 2300 CFM
  • Heavy gauge commercial stainless steel (#304 grade, 22-gauge)

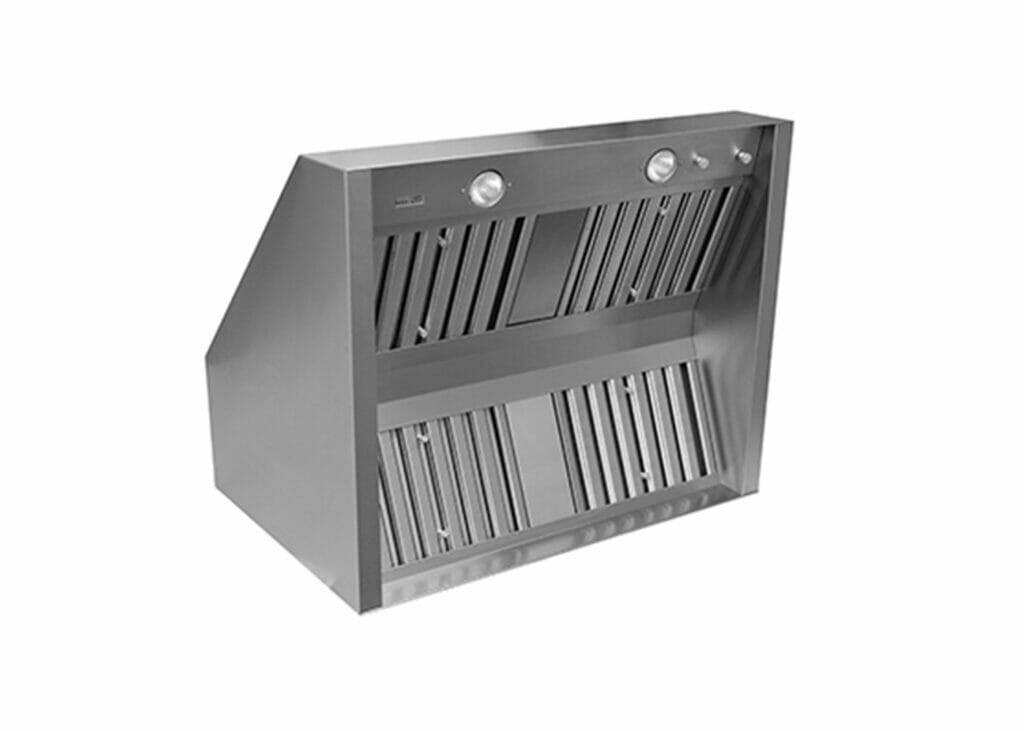

  • Four 12” by 14” baffle filters improve performance (six or eight filters on larger models)
  • Dimmable 50 watt halogen lights
  • Optional in-line blowers deliver 1266 CFM

Installation & Care:

  • Remote blower models are pre-wired for use with most in-line or exterior blowers (6 Amp maximum draw)
  • Hoods with internal blowers are all pre-wired and pre-assembled
  • 10” round discharge (two 10” on larger models)
  • NEW Convertible Discharge model – both top and rear venting options
  • Optional 2 piece, telescopic single (18″ wide) or double ( 30″ wide) Duct Covers are available, for up to 10′ ceiling, or additional Duct Covers up to 12′ ceiling
  • Durable, dishwasher safe commercial stainless steel baffle filters
  • All stainless steel exterior design is easy to keep clean and eliminates grease traps
Specifications
FRONT TO BACK32"
ColourS/S
CFM2300
3-SPEED INTERNAL BLOWERYes
HALOGEN LIGHTS4
S/S BAFFLE FLITERSYes
CONVERTIBLE DUCTINGYes
DUCT COLLAR2 X 10"
DIMMABLE LIGHT CONTROLYes
